Barres Case Studies

Case Studies

West Cline, Brora

Location: Brora
Property Size: 200m²
Property Type: 4 Bedroom New Build, 2015
Architect: Heartland Home Services
Installer: JP Ross Plumbing & Heating Services
Technologies: Barres underfloor heating
OCHNSER ELW 12 air source heat pump
OCHSNER Europa IWP DHW heat pump
OCHSNER touchscreen controller with web2com server

Project Details

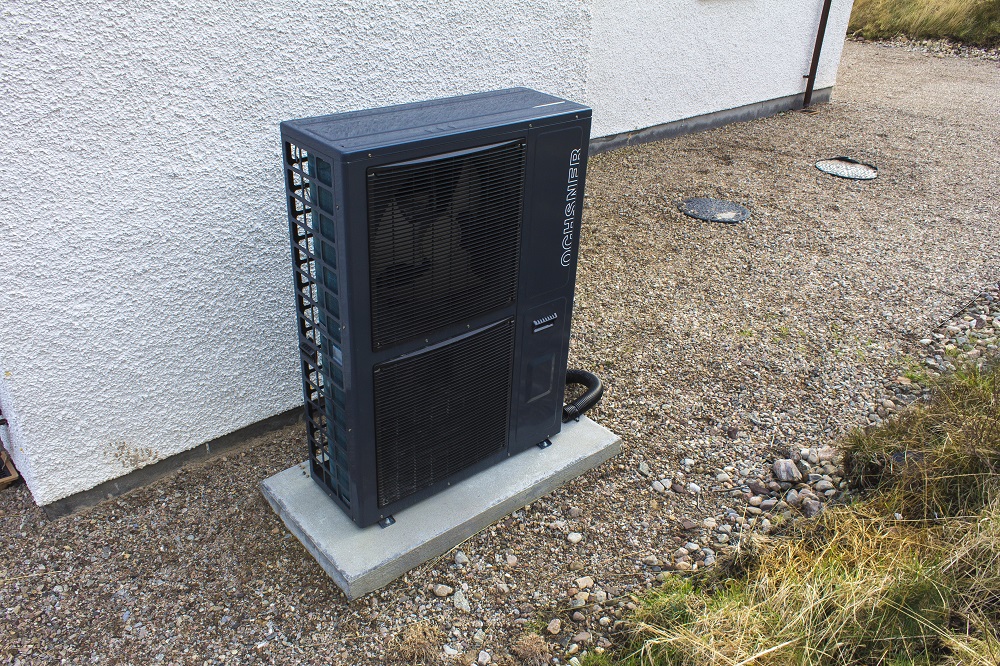

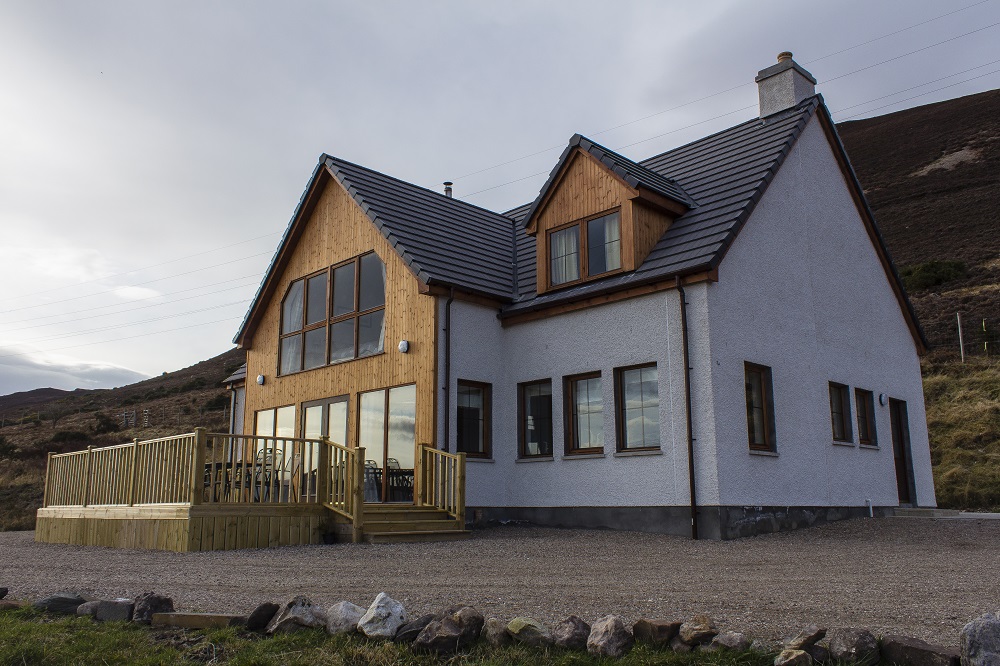

This new 200m² property overlooks Brora. It is heated by an OCHSNER ELW 12kW air source heat pump. This is the entry level heat pump in OCHSNER’s range but still offers superb efficiencies compared to it’s competitors. The ELW heat pump is a split system with the evaporator outside the property extracting energy from the air to provide heat to the internal unit. The evaporator is very quiet in operation.

The ELW is coupled to a 300l OCHSNER buffer tank which provides heat to underfloor heating on the ground floor and oversized radiators on the first floor. Domestic hot water is provided by an OCHSNER Europa IWP 2.2kW domestic hot water heat pump which extracts energy from the first floor to provide up to 60°C domestic hot water with a COP of 4.3.
