Barres Case Studies

Case Studies

Lochletter, Balnain



Location: Balnain
Property Size: 150m²

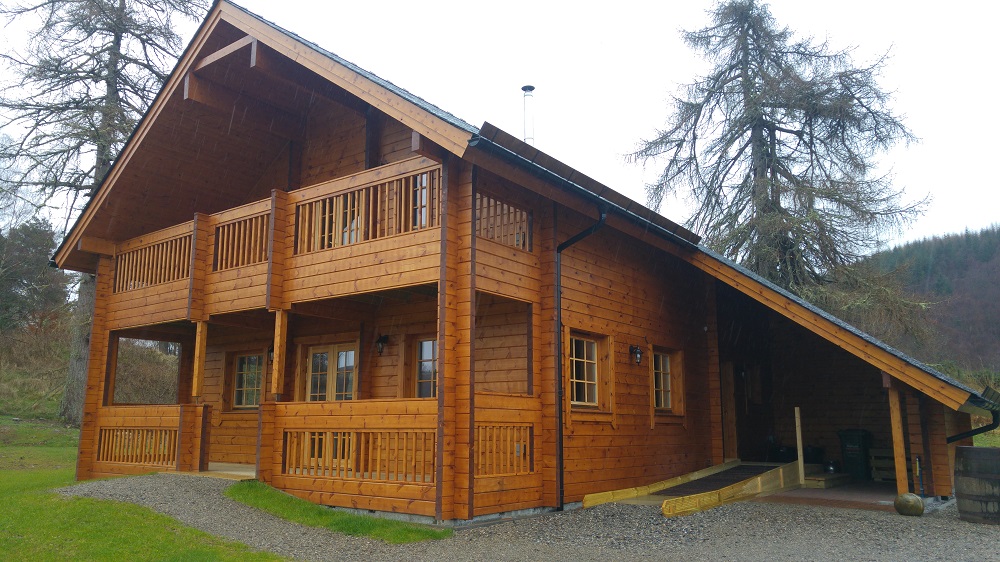

Property Type: 3 Bedroom Dwelling New Build, 2016
Architect: D Kelly Design
Installer: Millers Plumbing Heating & Energy Solutions
Technologies: OCHNSER GMLW 14 Plus ASHP
OCHNSER GMLW 9 Plus ASHP
OCHSNER touchscreen controller
OCHSNER web2com server

Project Details

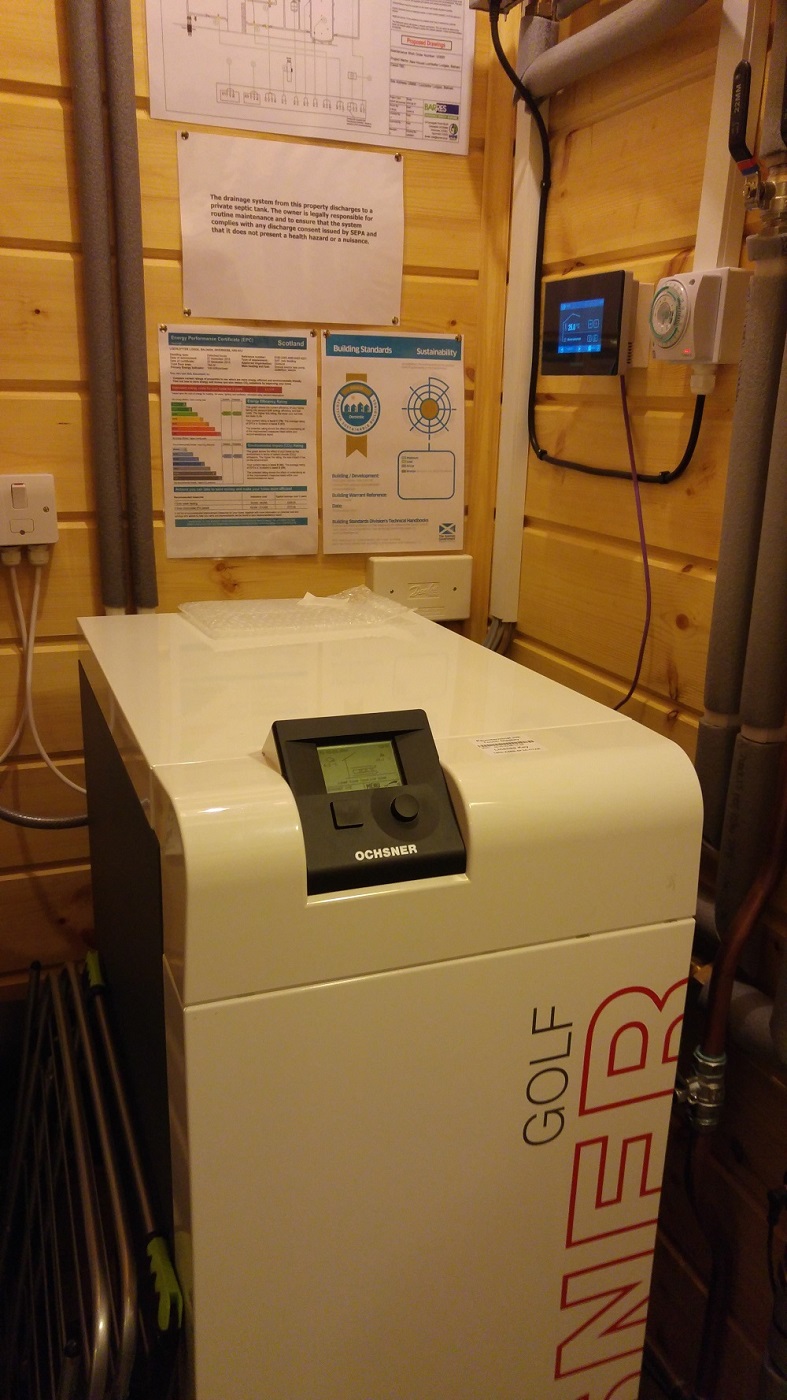

Project Details: This 150m² new build was completed in 2016. It is heated by an OCHSNER GMSW 10 Plus ground source heat pump with underfloor heating on the ground floor and oversized radiators on the first floor. The energy for the heat pump is provided by ground loops with 600m of 32mm MDPE installed in trenches 1.2m deep.

The heating is fed from a 300l OCHSNER buffer tank with the domestic hot water provided by a Dimplex Ec-Eau ECS300HP cylinder.

Also connected to the heat pump is OCHSNER’S touchscreen controller with integrated web2com server.
